High-Purity Copper Welding Wheel with Precision Machined Surface and Custom Sizes for Seam Welding Machines

Seam Welding Wheel Copper Alloy Resistance Electrode Wheels Seam Welder Accessory Parts Disc Shape for Seaming Welding

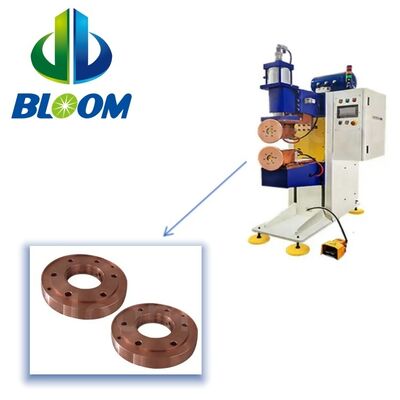

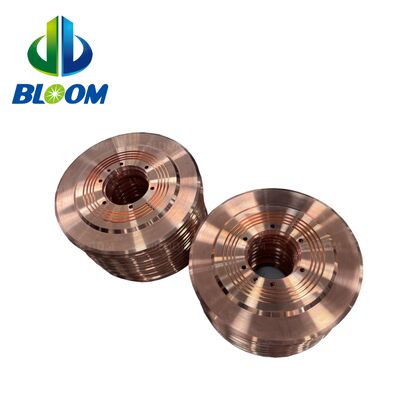

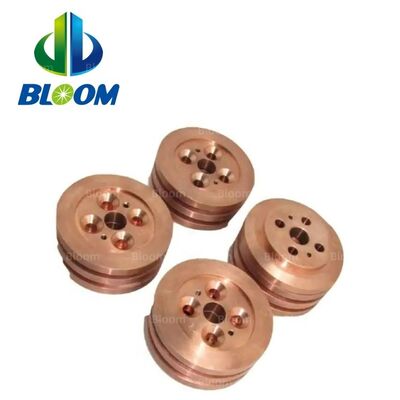

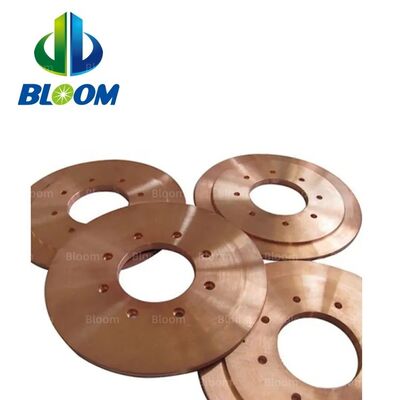

BLM welding copper disc, also known as welding wheel or seam welding disc, is a key component used in resistance seam welding machines. Designed for continuous welding operations, our copper welding discs ensure stable power transmission, uniform contact pressure and consistent weld quality across long production runs.

Made from high‑purity copper or copper‑alloy materials with excellent electrical conductivity and thermal stability, our welding wheels are capable of withstanding high currents, repeated friction and high‑temperature environments. The precision‑machined rolling surface provides smooth rotation during seam welding, helping to minimize sparking, electrode wear and weld defects.

We offer a range of standard sizes, and custom solutions are available to match different seam welder models, strip thicknesses, welding speeds and production requirements. Each welding copper disc undergoes strict quality control, including conductivity testing, dimensional inspection and hardness verification, to ensure reliable performance and long service life in industrial production lines.

Common applications include automotive steel strip welding, household appliance sheet metal seam welding, steel mesh & screen welding, tube & pipe longitudinal seam welding, and other continuous resistance welding processes. With stable quality, competitive pricing and professional technical support, BLM welding copper discs have become a trusted choice for seam welding equipment manufacturers and production users worldwide.

An electrode wheel made of copper alloy is a component used in seam welding machines. Seam welding is a type of resistance welding process commonly used for joining sheet metal components.

The electrode wheel is designed to apply pressure and conduct electrical current to create a weld between two metal surfaces. It typically consists of a copper alloy disc that rotates and applies pressure onto the workpiece. The copper alloy is chosen for its excellent electrical conductivity, high thermal conductivity, and good wear resistance.

The round electrode disc is the part of the electrode wheel that comes into direct contact with the workpiece. It is usually smooth and flat to ensure even pressure distribution and optimal electrical contact during the welding process. The round shape helps in achieving a consistent and continuous weld along the seam.

The copper alloy electrode wheel and round electrode disc are essential components in seam welding machines, as they provide the necessary electrical conductivity and mechanical pressure required to create strong and durable welds in sheet metal applications.

To use a welding wheel, specifically an electrode wheel, in seam welding, follow these general steps:

1. Setup and Preparation: Ensure that you have a seam welding machine with a properly installed and functioning electrode wheel. Make sure the machine is powered off and disconnected from the power source before proceeding.
2. Material Preparation: Prepare the metal sheets or components that require welding. Clean the surfaces to be joined to remove any dirt, oil, or contaminants that could interfere with the welding process.
3. Adjustments: Depending on the specific machine and application, you may need to make adjustments to the welding parameters such as current, speed, and pressure. Refer to the machine's manual or consult an expert for guidance on the appropriate settings for your specific welding task.
4. Alignment: Position the metal sheets or components to be welded, ensuring that the seam is properly aligned. The electrode wheel should be positioned to apply pressure directly on the seam.
5. Power On: Turn on the seam welding machine and ensure that all safety measures are in place. Follow the manufacturer's instructions for powering on and operating the machine.
6. Welding Operation: As the machine operates, the rotating electrode wheel should make contact with the seam while applying pressure. The electrical current passes through the wheel and generates heat at the interface between the metal surfaces. The heat, combined with the pressure applied by the wheel, melts and fuses the metal, creating a continuous weld along the seam.
7. Monitoring and Adjustment: Throughout the welding process, monitor the quality of the weld and make any necessary adjustments to the welding parameters if needed. This may include modifying the current, speed, or pressure to achieve the desired weld characteristics.
8. Completion and Inspection: Once the welding operation is complete, allow the weld to cool down. Inspect the weld for any defects, such as incomplete fusion or excessive porosity. Perform any necessary post-welding treatments or inspections based on the specific requirements of your application.
9. Maintenance: After using the welding wheel, clean and maintain it according to the manufacturer's instructions. Regularly inspect the wheel for wear or damage and replace it as needed to ensure optimal performance.

• Continuous seam welding of steel strips and sheets
• Automotive sheet metal & component welding lines
• Household appliance shell & panel seam welding
• Steel mesh, screen & grid welding
• Tube & pipe longitudinal seam welding
• Other resistance seam welding processes for metal strips & sheets
